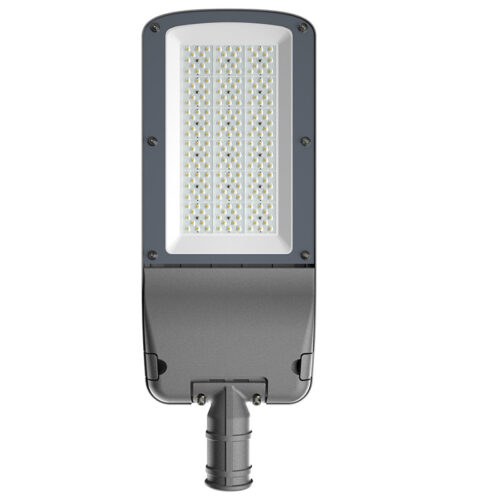

TE series LED Street Light

The TE series LED street light sets a new benchmark in LED lighting with performing and
flexible solutions that lead to the shortest payback time. With its long lifespan and limited
maintenance requirements, the TE series enables you to maximise your return on
investment. Available in 4 sizes – with a lumen package scalable up to 35,200lm – and with
numerous lighting distributions, the TE series can meet all your road and urban lighting
needs.
Model:TE3104-200W
Nominal Power 200W
Luminous Flux 120-150LM/W
LED SMD 3030/5050
LED Quantity 215pcs
Input Voltage AC85-265V 50-60Hz
CCT 6500K/3200K/4000K optional

The TE series LED street light sets a new benchmark in LED lighting with performing and
flexible solutions that lead to the shortest payback time. With its long lifespan and limited
maintenance requirements, the TE series enables you to maximise your return on
investment. Available in 4 sizes – with a lumen package scalable up to 35,200lm – and with
numerous lighting distributions, the TE series can meet all your road and urban lighting
needs.

The solid aluminum material ensures durability and efficient heat dissipation. The radiator
adopts a hollow design to increase the heat dissipation area, accelerate the airflow,protect the lamp chip, and provide 50,000+ hours of long-lasting lighting

          ITEM

TE3101-50W

TE3102-100W

TE3103-150W

TE3104-200W

        Nominal Power

50W

100W

150W

200W

        Input Voltage

AC85-265V,50/60Hz

          LED Quantity

SMD 64pcs

SMD 110pcs

SMD 180pcs

SMD 215pcs

          Lamp Body Size

535*210*110mm

605*265*110mm

710*265*110mm

760*280*110mm

          CCT

6500K/3200K/4000K optional

        LED Driver

Meanwell/Philips optional

        Protection Grade

IP65

          Luminous Flux

110-150LM/W

          Operating Temperature

-20℃ to 60℃

          Material

Aluminium

        Power Factor

> 0.95

          Certificate

CE/RoHs

          Warranty

3Years

Key Components & Advantages

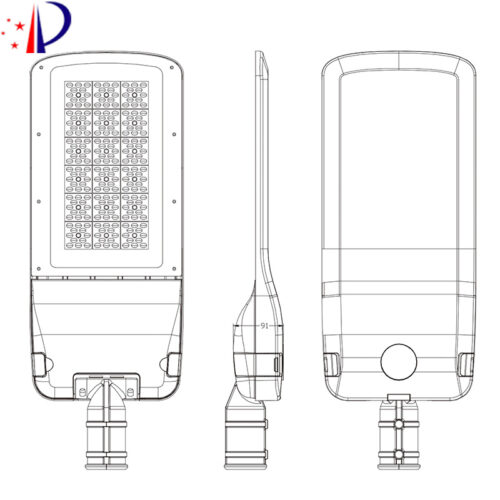

Patent-Design

Patented Design

Patents in utility & appearance registered in China.

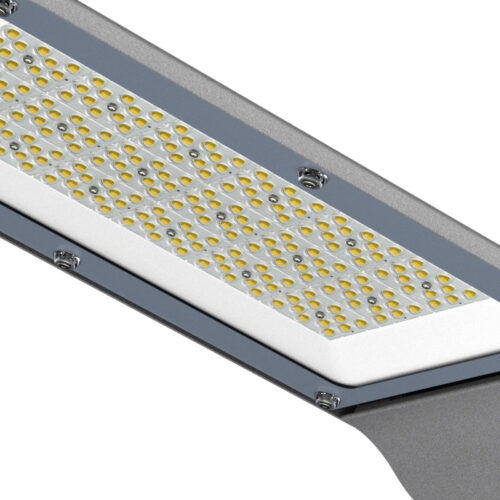

Hight-Brightness-LED

High-brightness-LED

high quality LED chips distributed in one lamp cap, high brightness

TECHNICAL-SUPPORT

Technical Support

Simulations to show optic performance in real applications, Free for all our customers

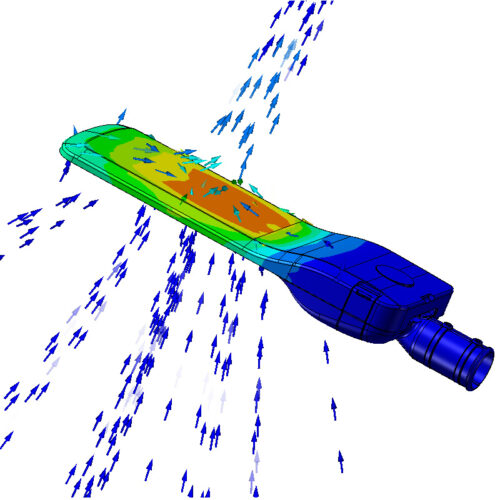

Thermal-Management

Thermal Management

Structure is optimized by advanced FEA technology.

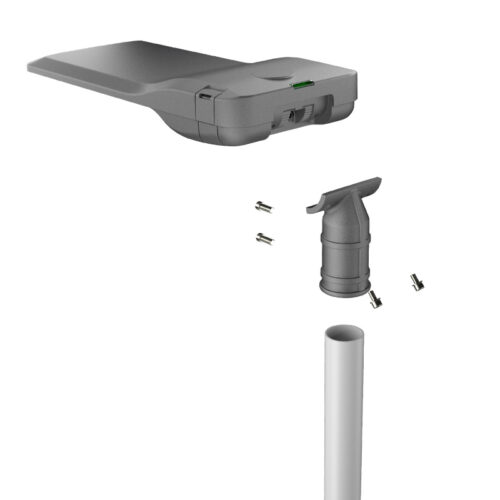

Ajustable-angle

Ajustable angle

Suitable for multiple light distribution scenes

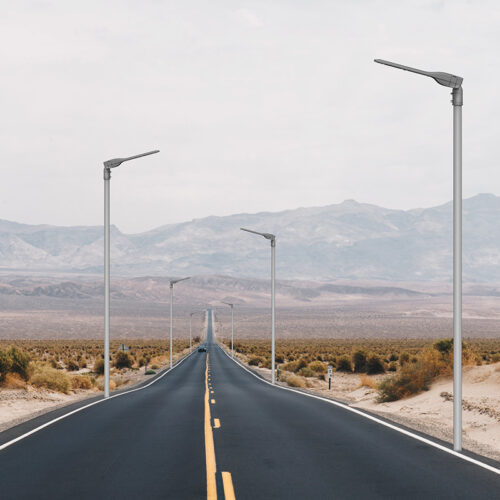

Widely-Application

Widely Application

Products are widely used in yard, garden and other areas.
