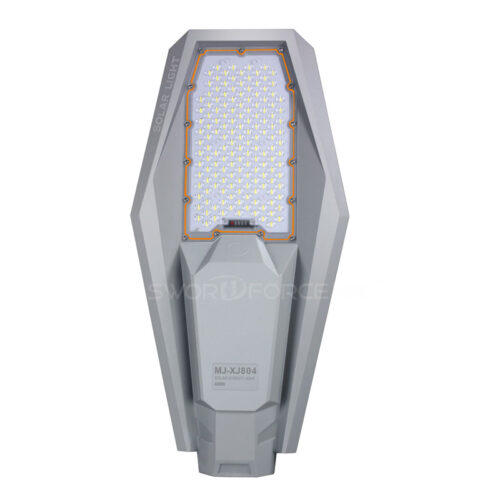

3000lm Solar LED Street Light

This product adopts the design of LED optical lens. The lens can effectively gather the ray of the light source to improve the brightness and reduce the light loss. The light is improved by more than 20 compared to the traditional reflector. At the same time, the PC (Teijin) material is used in the lens of this product which has a transmittance of 92 after processing, which is much higher than 80 of the transmittance. Summing up the advantages, under the same configuration, the overall lighting efficiency of this product is improved by 30-50% compared with competition.

Model:MJ-XJ 804 400W
Solar Panel Polysilicon 5V 50W
Luminous Flux 3000LM
LED Quantity SMD 2835
Battery LiFPO4 3.2V 48AH
Changing Time 6-8Hours
Working Time 30Hours

This solar controller uses PWM-controlled P-MOS charging, a unique charge/discharge management system with more efficient charge/discharge efficiency. For example: The market routinely uses 6 V/ 30 W photovoltaic panels with a peak charging current of 5 A; but our product uses 5 V/ 30 W photovoltaic panels with a peak charging current of 6A. The charging efficiency is improved by 20%.
In the meantime, the product can be used for high-power lighting with a maximum power of 30 W, which can be applied to floodlit court, 10-meter high pole street lights, architectural lights, etc.

          ITEM

MJ-XJ 801-100W

MJ-XJ 802-200W

MJ-XJ 803-300W

MJ-XJ 804-400W

          Solar Panel

Polysilicon 5V 25W

Polysilicon 5V 35W

Polysilicon 5V 40W

Polysilicon 5V 50W

          Battery Parameters

LiFPO4 3.2V 18AH

LiFPO4 3.2V 30AH

LiFPO4 3.2V 36AH

LiFPO4 3.2V 48AH

          LED Quantity

SMD 2835 192pcs

SMD 2835 192pcs

SMD 2835 300pcs

SMD 2835 300pcs

          Lamp Body Size

520*260*80mm

520*260*80mm

600*300*80mm

600*300*80mm

          CCT

6400K

          Changing Time

6-8Hours

          Discharging Time

>18Hours

          Luminous Flux

1150LM

2250LM

2600LM

3000LM

          Operating Temperature

-20℃ to 60℃

          Material

Aluminum

          Connection cable

1.2m/3.28ft

          Certificate

CE/RoHs/UL

          Warranty

2Years

Key Components & Advantages

Patented-Design

Patented Design

Patents in utility & appearance registered in China.

PMMA-lens

Optical Lens

The lens of this product is made of PC (Japanese emperor) material, and the transmittance after processing is as high as 92%

OEM-production-street-light

OEM Production

Our factory can provide OEM production services, custom packaging, brand logo

Polar-Coordinate-Curve

Large luminous angle

Through professional optical design, Interstellar Warrior is equipped with an optical lens of 150 * 70

Remote-control

Remote control

Multiple control modes, more scientific and reasonable, more energy saving

P-mos-Charging

P-Mos charging

This product solar controller through PWM control p-Mos charging, unique charge and discharge management system, with more efficient Charge discharge efficiency.
