1160lm Solar Flood Light

Adjustable wall mount bracket , you can install it either on a wall as factory sign light or use it as security light to light big place. It will automatically switch to highlight mode when it detects an object moving.
Model:MJ D-902
Solar Panel Polysilicon 5V 25W
Luminous Flux 1160LM
LED Quantity SMD 2835 144pcs
Battery LiFPO4 3.2V 18AH
Changing Time 6-8Hours
Working Time 12-18Hours





Solar controller controlled by P-MOS charging through PWM, unique charge and discharge management system, with more efficient charge discharge efficiency. For example: most common 6V/30W solar panel in the market, the peak charging current is 5A ; our product uses 5V/30W solar panel, the charging peak current is 6A, that’s why the charging efficiency increased by 20%.

The product is equipped with high-end leather handles, which can be used as portable lights, emergency lights, etc. It is suitable for outdoor camping, night fishing and other application scenarios.

video587x402

          ITEM

MJ D-901

MJ D-902

MJ D-903

MJ D-904

          Solar Panel

Polysilicon 5V 15W

Polysilicon 5V 25W

Polysilicon 5V 28W

Polysilicon 5V 35W

          Battery Parameters

LiFPO4 3.2V 12AH

LiFPO4 3.2V 18AH

LiFPO4 3.2V 24AH

LiFPO4 3.2V 30AH

          LED Quantity

SMD 2835 82pcs

SMD 2835 144pcs

SMD 2835 236pcs

SMD 2835 324pcs

          Lamp Body Size

217*179*45mm

258*213*45mm

312*270*50mm

365*295*50mm

          CCT

6400K

          Changing Time

6-8Hours

          Discharging Time

>18Hours

          Luminous Flux

730LM

1160LM

2600LM

3000LM

          Operating Temperature

-20℃ to 60℃

          Material

Aluminum

          Connection cable

5m/16.4ft

          Certificate

CE/RoHs

          Warranty

2Years

Key Components & Advantages

Patented-Design

Patent Design

Patents in utility & appearance registered in China.

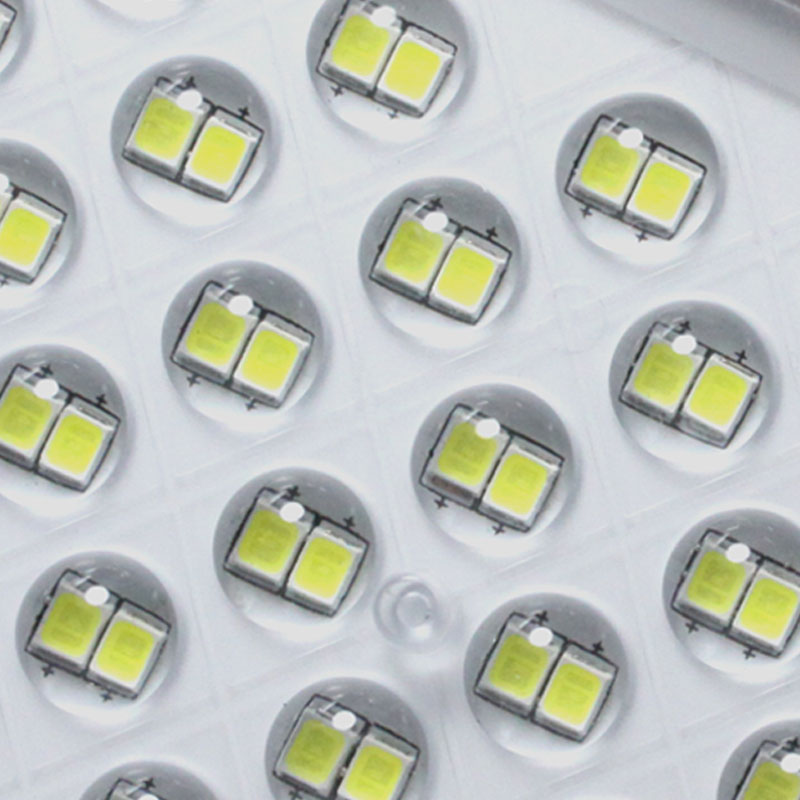

3030-LED

2835 LED

We use high light efficiency LED chip.

OEM-Production

OEM Production

Our factory can provide OEM production services, custom packaging, brand logo

Widely-application

Widely Application

Products are widely used in yard, garden and other areas.

Remote-control

Remote Control

3 working modes can be chosen from.

P-mos-Charging

P-MOS charging

This product solar controller through PWM control p-Mos charging, unique charge and discharge management system, with more efficient Charge discharge efficiency.
