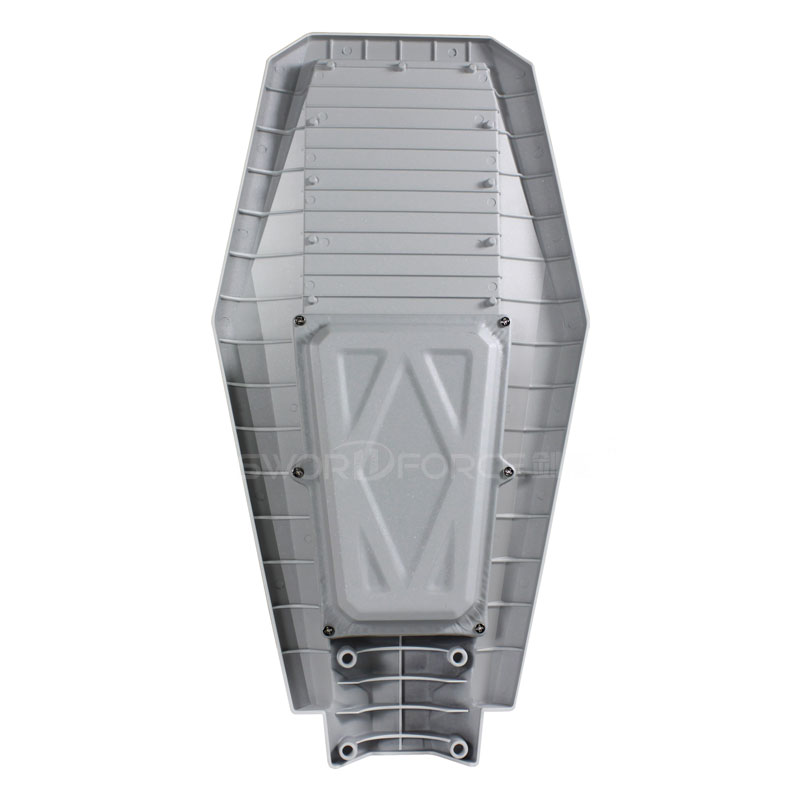

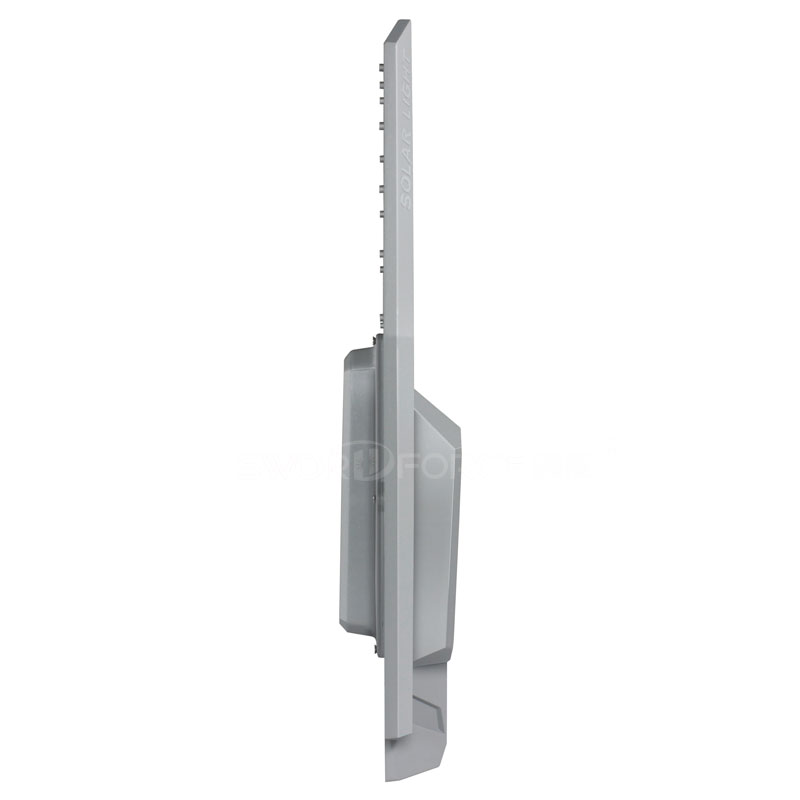

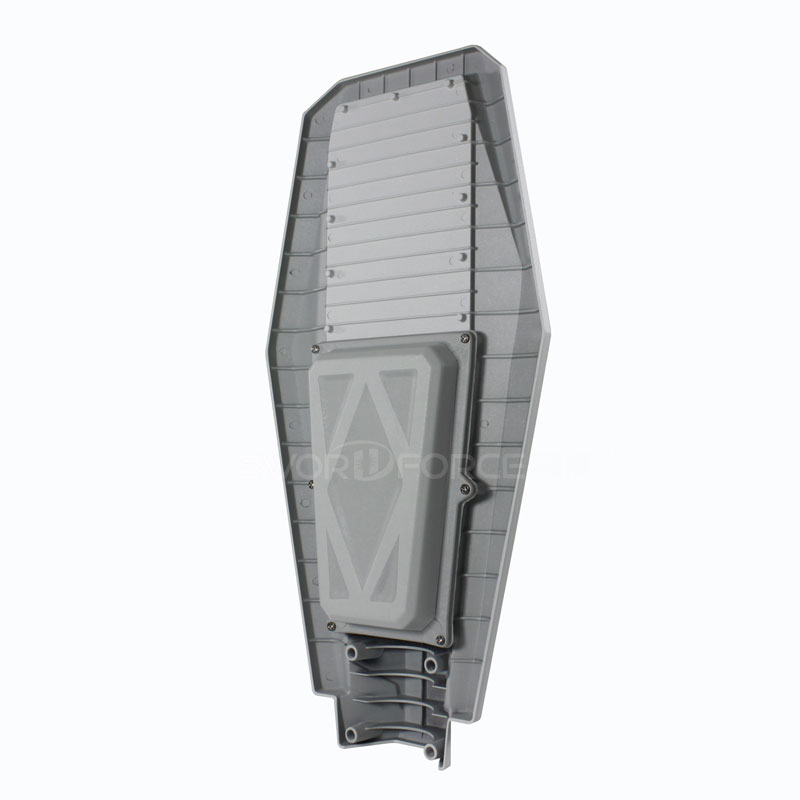

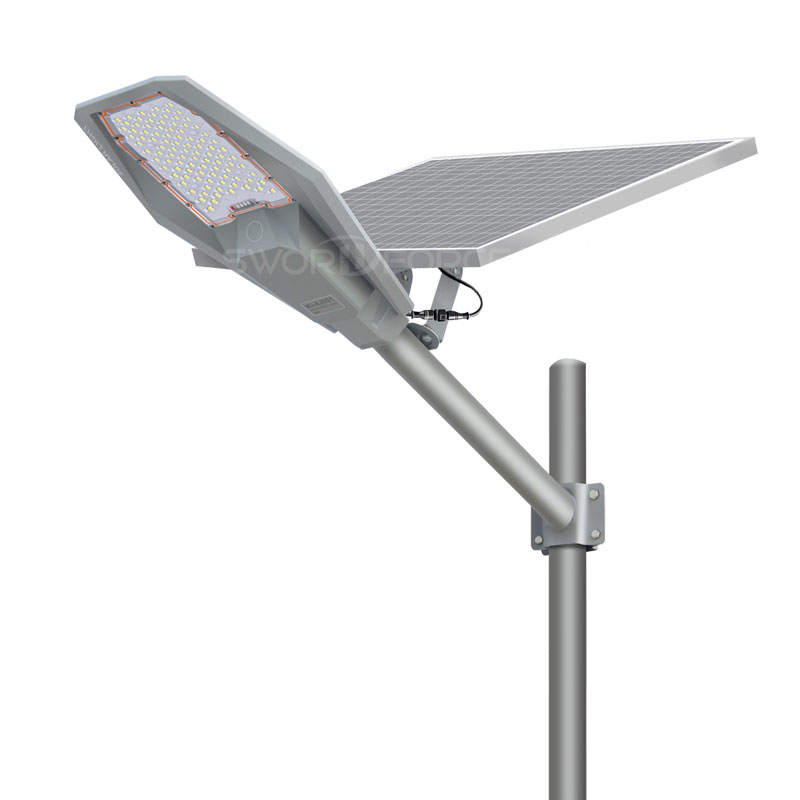

1150lm Solar LED Street Light
This product adopts the design of LED optical lens. The lens can effectively gather the ray of the light source to improve the brightness and reduce the light loss. The light is improved by more than 20 compared to the traditional reflector. At the same time, the PC (Teijin) material is used in the lens of this product which has a transmittance of 92 after processing, which is much higher than 80 of the transmittance. Summing up the advantages, under the same configuration, the overall lighting efficiency of this product is improved by 30-50% compared with competition.
| Model：MJ-XJ 801 100W | |||
| Solar Panel | Polysilicon 5V 25W | ||
| Luminous Flux | 1150LM | ||
| LED Quantity | SMD 2835 | ||
| Battery | LiFPO4 3.2V 18AH | ||
| Changing Time | 6-8Hours | ||
| Working Time | 18Hours | ||
This solar controller uses PWM-controlled P-MOS charging, a unique charge/discharge management system with more efficient charge/discharge efficiency. For example: The market routinely uses 6 V/ 30 W photovoltaic panels with a peak charging current of 5 A; but our product uses 5 V/ 30 W photovoltaic panels with a peak charging current of 6A. The charging efficiency is improved by 20%.
In the meantime, the product can be used for high-power lighting with a maximum power of 30 W, which can be applied to floodlit court, 10-meter high pole street lights, architectural lights, etc.
ITEM
MJ-XJ 801-100W
MJ-XJ 802-200W
MJ-XJ 803-300W
MJ-XJ 804-400W
Battery Parameters
LiFPO4 3.2V 18AH
LiFPO4 3.2V 30AH
LiFPO4 3.2V 36AH
LiFPO4 3.2V 48AH
Lamp Body Size
520*260*80mm
520*260*80mm
600*300*80mm
600*300*80mm
Changing Time
6-8Hours
Luminous Flux
1150LM
2250LM
2600LM
3000LM
Material
Aluminum
Certificate
CE/RoHs/UL
Key Components & Advantages
Patented Design
Patents in utility & appearance registered in China.
Optical Lens
The lens of this product is made of PC (Japanese emperor) material, and the transmittance after processing is as high as 92%.
OEM Production
Our factory can provide OEM production services, custom packaging, brand logo
Large luminous angle
Through professional optical design, Interstellar Warrior is equipped with an optical lens of 150 * 70.
Remote control
Multiple control modes, more scientific and reasonable, more energy saving
P-Mos charging
This product solar controller through PWM control p-Mos charging, unique charge and discharge management system, with more efficient Charge discharge efficiency.
